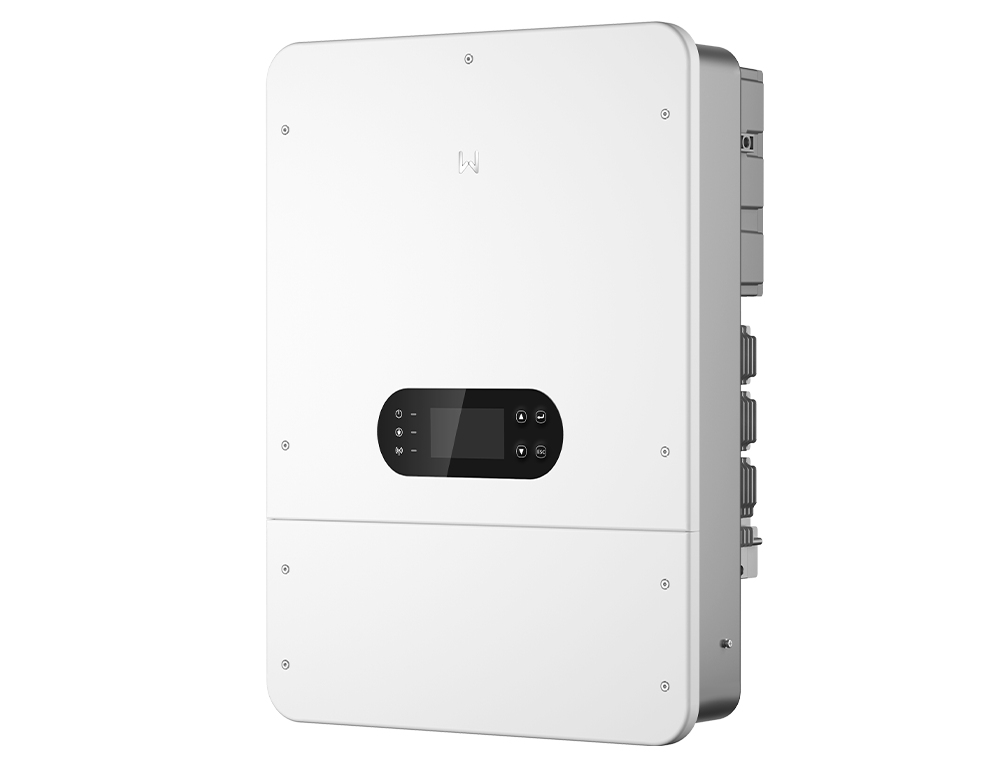

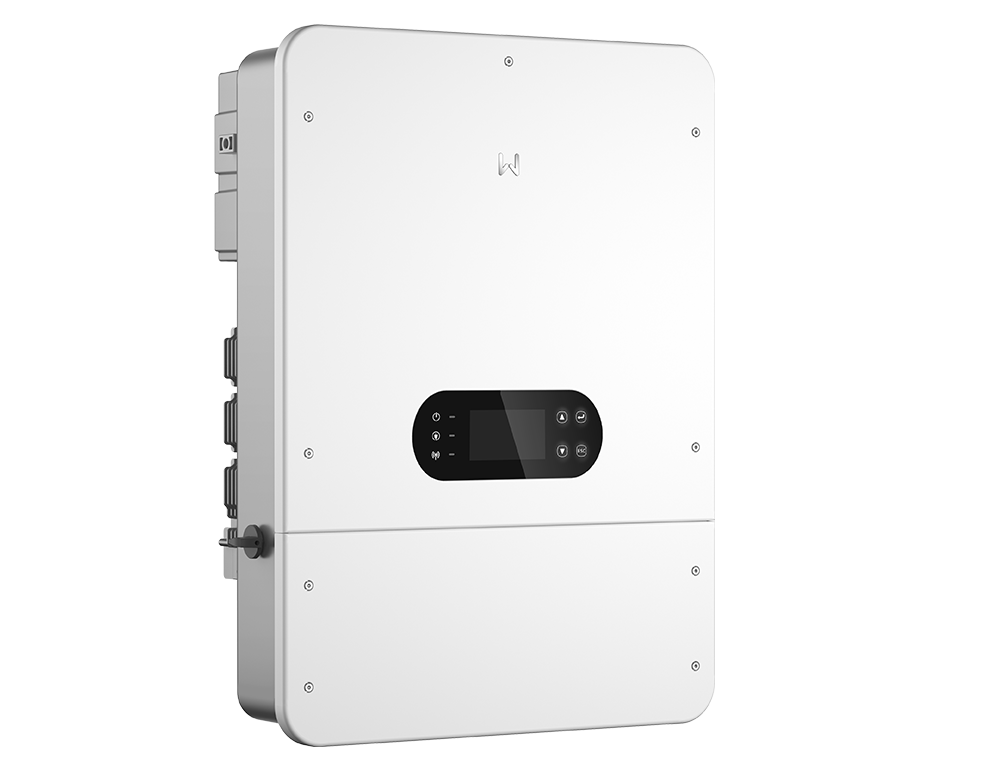

ES Uniq Series
3-12kW I Single Phase I 1/2 MPPTs Hybrid Inverter (LV)
GoodWe's ES Uniq Series inverter, available in 3-12kW capacities, are specifically designed for residential PV
installations. It offers flexible compatibility with both ongrid and off-grid systems and support parallel connection of up to 6 inverters for easy system expansion. The ES Uniq inverters feature a user-friendly touch-screen LCD display for intuitive operation and monitoring, and can be combined with a range of battery capacities and brands, including GoodWe's Lynx A and Lynx U batteries.
Flexible & Adaptable Applications
· 3-in-1 Port: generator & smart loads &
on-grid inverter
· Micro-grid operation with PV inverter
· Supports on- and off-grid parallel
operation of up to 6 units
Higher Power Generation
· Max. 20A DC input current per string
· 200% PV input oversizing
Superb Safety & Reliability
· AI-driven AFCI1
· IP66 ingress protection
Smart Control & Monitoring
· Smart load control
· Seamless switching to backup <4ms
3-12kW I Single Phase I 1/2 MPPTs Hybrid Inverter (LV)
GoodWe's ES Uniq Series inverter, available in 3-12kW capacities, are specifically designed for residential PV
installations. It offers flexible compatibility with both ongrid and off-grid systems and support parallel connection of up to 6 inverters for easy system expansion. The ES Uniq inverters feature a user-friendly touch-screen LCD display for intuitive operation and monitoring, and can be combined with a range of battery capacities and brands, including GoodWe's Lynx A and Lynx U batteries.
Flexible & Adaptable Applications
· 3-in-1 Port: generator & smart loads &
on-grid inverter
· Micro-grid operation with PV inverter
· Supports on- and off-grid parallel
operation of up to 6 units
Higher Power Generation
· Max. 20A DC input current per string
· 200% PV input oversizing
Superb Safety & Reliability
· AI-driven AFCI1
· IP66 ingress protection
Smart Control & Monitoring
· Smart load control
· Seamless switching to backup <4ms
Rs. 430,000
Retail price · PKR · May vary with USD/PKR rate ⓘ
Technical Specifications
| Type | Hybrid |
| Model | GW10K-ES-C10 |
| Size | 10kW |
| Category | ES Uniq |
| Price | Rs. 430,000 (per unit) |
| Full Specifications | |
| Battery Type | Li-Ion / Lead-acid |
| Battery Voltage Nominal V | 48 |
| Battery Voltage Range V | 40~60 |
| Battery Startup Voltage V | 44.2 |
| Battery Inputs | 1 |
| Max Charge Current A | 200 |
| Max Discharge Current A | 200 |
| Max Charge Power Kw | 10 |
| Max Discharge Power Kw | 11 |
| Pv Max Input Power Kw | 20 |
| Pv Max Input Voltage V | 600 |
| Mppt Voltage Range V | 60~550 |
| Mppt Startup Voltage V | 58 |
| Pv Nominal Voltage V | 360 |
| Max Input Current Per Mppt A | 32/32 |
| Max Sc Current Per Mppt A | 48/48 |
| Mppt Count | 2 |
| Strings Per Mppt | 2/2 |
| Ac Nominal Output Kw | 10 |
| Ac Nominal Apparent Power Kva | 10 |
| Ac Max Active Power Kw | 11 |
| Ac Nominal Voltage V | 220/230/240 |
| Ac Voltage Range V | 170~280 |
| Ac Nominal Frequency Hz | 50/60 |
| Ac Frequency Range Hz | 45~55 / 55~65 |
| Max Ac Output Current A | 50 |
| Max Ac From Grid Current A | 75 |
| Power Factor | ~1 (adj 0.8 lead to 0.8 lag) |
| Max Thd Pct | <3 |
| Backup Nominal Power Kva | 10 |
| Backup Max Power Kva | 11.0 (20.0, 10s) |
| Max Efficiency Pct | 97.6 |
| Eu Efficiency Pct | 96.2 |
| Batt To Ac Efficiency Pct | 95.5 |
| Mppt Efficiency Pct | 99.9 |
| Generator Support | true |
| Parallel Units Max | 6 |
| Operating Temp C | -35~+60 |
| Humidity Pct | 0~95 |
| Max Altitude M | 3000 |
| Cooling | Smart Fan Cooling |
| User Interface | Touch-screen LCD, WLAN + APP |
| Comm Bms | CAN |
| Comm | RS485, WiFi + LAN + Bluetooth |
| Comm Protocols | Modbus-RTU, Modbus-TCP |
| Weight Kg | 29 |
| Dimensions Mm | 560 x 444.5 x 226 |
| Topology | Non-isolated |
| Ip Rating | IP66 |
| Mounting | Wall Mounted |
| Dc Surge Protection | Type III |
| Ac Surge Protection | Type III |
| Afci | Optional |
| Rapid Shutdown | Optional |
