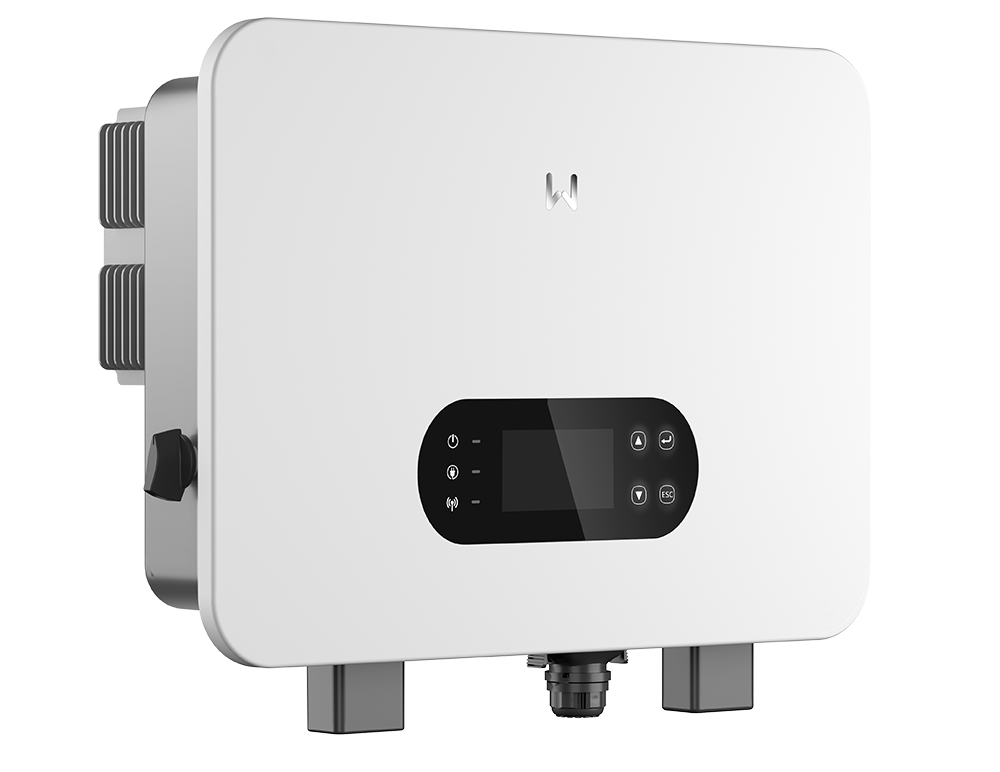

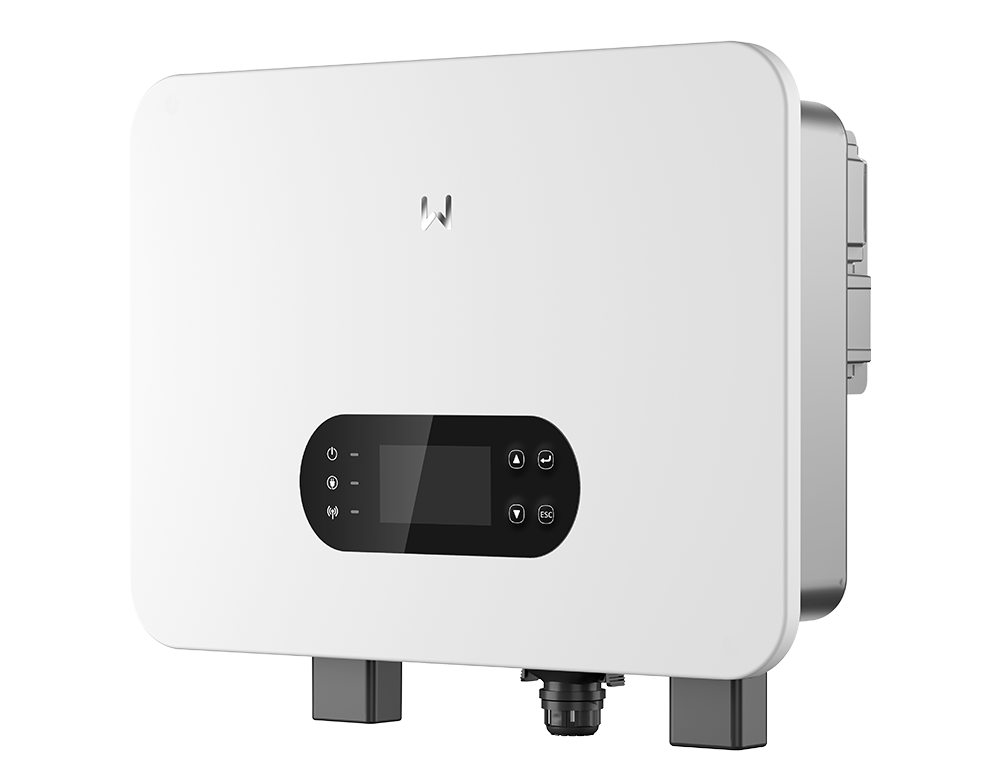

The GoodWe ES G2 inverter, ranging from 3 to 6kW, is a single-phase hybrid inverter designed to increase selfconsumption of the generated solar energy, with the ability to control the flow of energy intelligently. The inverter can automatically realize UPS-level switching to the back-up mode in less than 10ms, with strong backup ability to withstand heavy loads like air conditioners. Its smart design also offers great flexibility for demanding scenarios as it supports parallel connection for dependable backup power supply. Featured with plug-and-play, compact design, and minimal weight, PV installations are quicker and easier to complete than ever before. Importantly, ES G2 is compatible with a wide range of low voltage batteries such as GoodWe Lynx Home U battery. For homeowners looking to achieve a high degree of energy autonomy, reliable power supply and affordable energy prices, the ES G2 is the right choice.
Rs. 190,000
Retail price · PKR · May vary with USD/PKR rate ⓘ
Technical Specifications
| Type | Hybrid |
| Model | GW3000-ES-20 |
| Size | 3kW |
| Warranty | 5 Years Replacement Warranty |
| Category | ES G2 |
| Price | Rs. 190,000 (per unit) |
| Full Specifications | |
| Battery Type | Li-Ion / Lead-acid |
| Battery Voltage Nominal V | 24 |
| Battery Voltage Range V | 20~30 |
| Battery Startup Voltage V | 24 |
| Battery Inputs | 1 |
| Max Charge Current A | 60 |
| Max Discharge Current A | 60 |
| Max Charge Power W | 3000 |
| Max Discharge Power W | 3200 |
| Pv Max Input Power W | 4500 |
| Pv Max Input Voltage V | 600 |
| Mppt Voltage Range V | 60~550 |
| Mppt Startup Voltage V | 58 |
| Pv Nominal Voltage V | 360 |
| Max Input Current Per Mppt A | 16 |
| Max Sc Current Per Mppt A | 23 |
| Mppt Count | 1 |
| Strings Per Mppt | 1 |
| Ac Nominal Output Power W | 3000 |
| Ac Nominal Apparent Power Va | 3000 |
| Ac Max Apparent Power Va | 3000 |
| Ac Max Power From Grid Va | 6000 |
| Ac Nominal Voltage V | 220/230/240 |
| Ac Voltage Range V | 170~280 |
| Ac Nominal Frequency Hz | 50/60 |
| Ac Frequency Range Hz | 45~55 / 55~65 |
| Max Ac Output Current A | 13.6 |
| Max Ac From Grid Current A | 27.3 |
| Power Factor | ~1 (adj 0.8 lead to 0.8 lag) |
| Max Thd Pct | <3 |
| Backup Nominal Power Va | 3000 |
| Backup Max Power Va | 3000 (6000@10s) |
| Backup Max Output Current A | 13.6 |
| Max Efficiency Pct | 97.6 |
| Eu Efficiency Pct | 96.7 |
| Batt To Ac Efficiency Pct | 95.5 |
| Mppt Efficiency Pct | 99.9 |
| Operating Temp C | -25~+60 |
| Humidity Pct | 0~95 |
| Max Altitude M | 3000 (derate >2000m) |
| Cooling | Natural Convection |
| User Interface | LED, WLAN + APP |
| Comm Bms | CAN |
| Comm Meter | RS485 |
| Comm Portal | WiFi / WiFi+LAN / 4G |
| Weight Kg | 19.6 |
| Dimensions Mm | 505.9 x 434.9 x 154.8 |
| Topology | Non-isolated |
| Standby Power W | <10 |
| Ip Rating | IP65 |
| Mounting | Wall Mounted |
| Dc Surge Protection | Type II |
| Ac Surge Protection | Type II |
| Afci | Optional |
