Monitoring & Control — 9 models

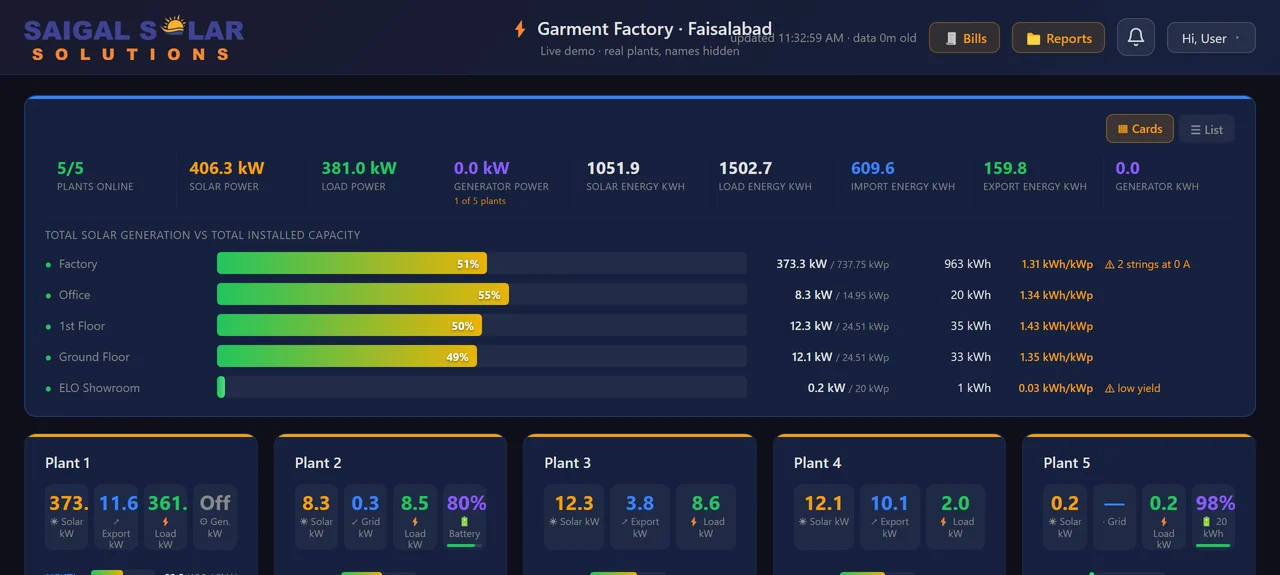

Energy Management Platform — Annual Access
Annual access to the Saigal Energy Management Platform for one plant: fleet, plant, inverter and string views, Deep Dive with the 30-minute MDI, reports, bill scrutiny, email alerts and logins for your team. Scope: for viewing only.

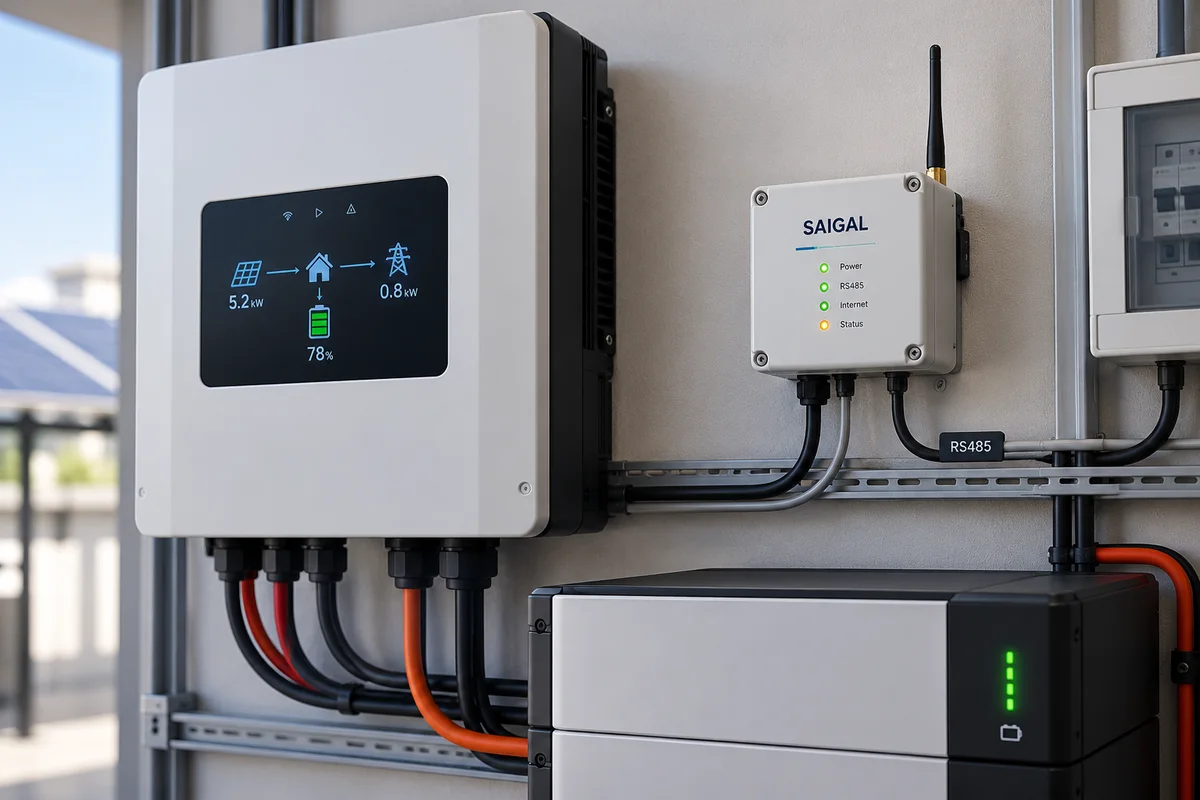

Saigal Box — Basic · Supply & Installation
The Saigal monitoring box for one plant, supplied and installed: our own control board with RS485, Wi-Fi. Reads the inverters directly, every few seconds, and keeps working when the inverter maker's app does not. Also fits as a no-wire box where the inverter has its own Wi-Fi dongle: it reads the dongle over the network, nothing wired into the inverter. Scope: up to 1 device (an inverter or a meter) in a single room. Reads data only, no control. Communication wire and CTs on the customer's account.

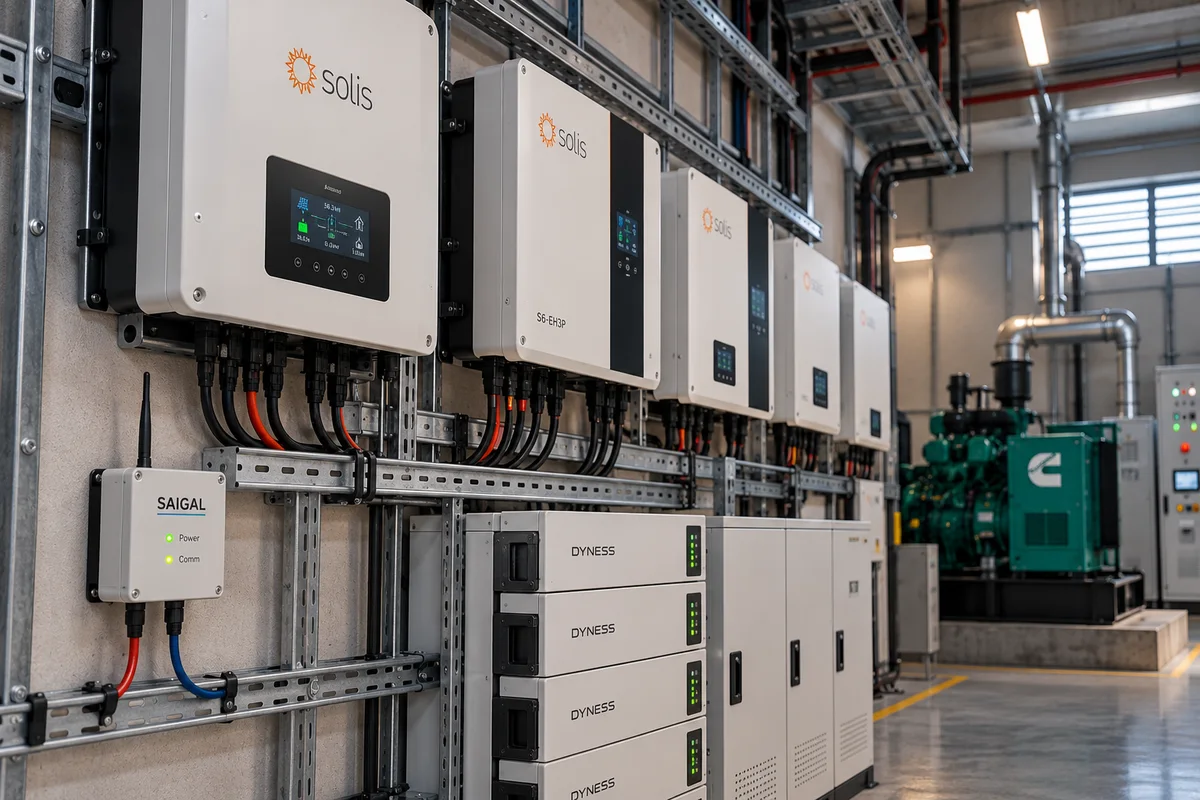

Saigal Box — Industrial · Supply & Installation
The industrial Saigal box for one plant, supplied and installed: a Waveshare industrial control board with RS485, built-in power isolation and digital isolation protection circuits. Wi-Fi. Reads the inverters directly, every few seconds. Scope: up to 3 devices (inverters or meters) in a single room. Reads data only, no control. Communication wire and CTs on the customer's account.
Saigal Box — Wired (Ethernet) · Supply & Installation
The industrial Saigal box plus an industrial serial server (RS485 to RJ45 Ethernet, TCP/IP to serial), supplied and installed, for sites that need a wired link. PoE optional. Scope: up to 3 devices (inverters or meters) in a single room. Reads data only, no control. Communication wire and CTs on the customer's account.

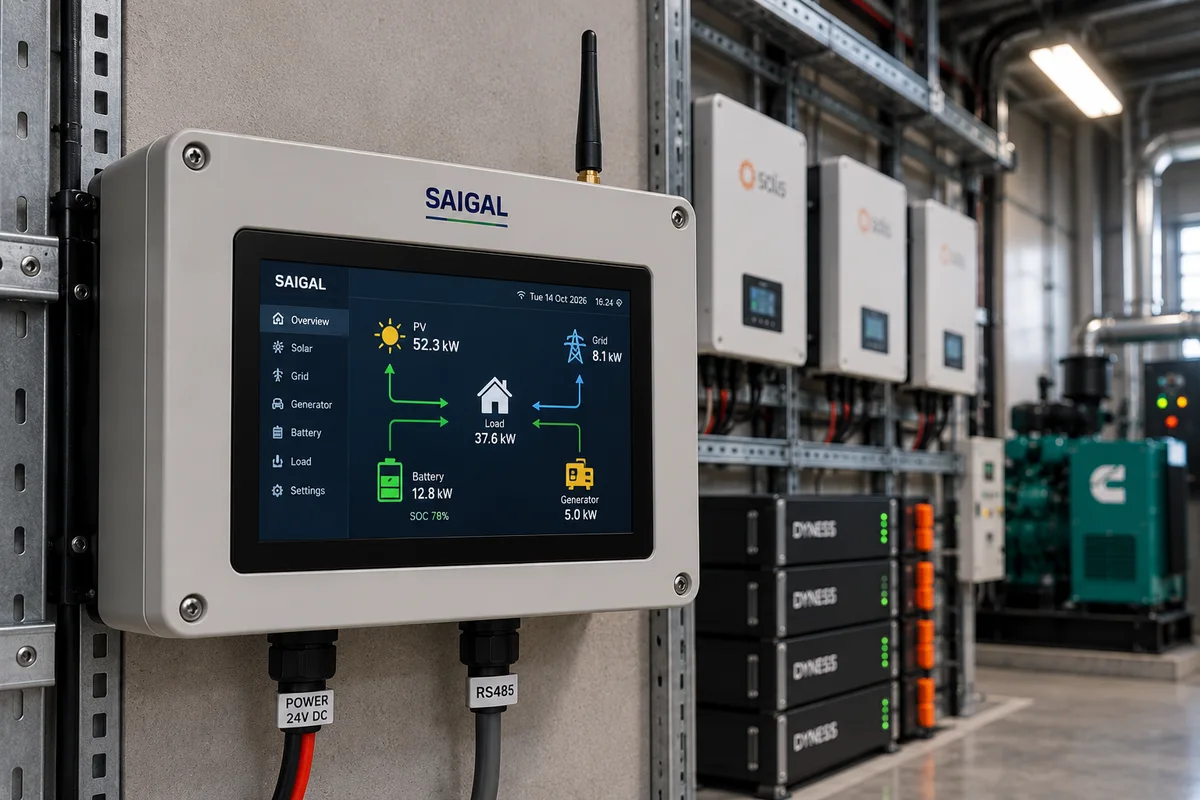

Saigal Screen — 7" Touch Display · Supply & Installation
A 7-inch ESP32-S3 touch screen for the wall, supplied and installed with its enclosure, showing your plant live from the Saigal box: solar, grid, battery and load. On order. Scope: up to 3 devices (inverters or meters) in a single room. Communication wire and CTs on the customer's account.

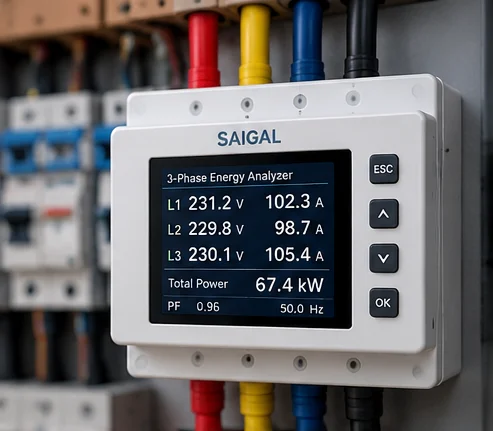

Energy Analyzer (Grid / Generator) — Supply & Installation
A three-phase energy analyzer on the grid or generator, supplied and installed: live import/export, load, per-phase volts/amps/kW, power factor and kVAR, generator run hours. Scope: an additional analyzer on an existing Saigal box. Communication wire and CTs on the customer's account.

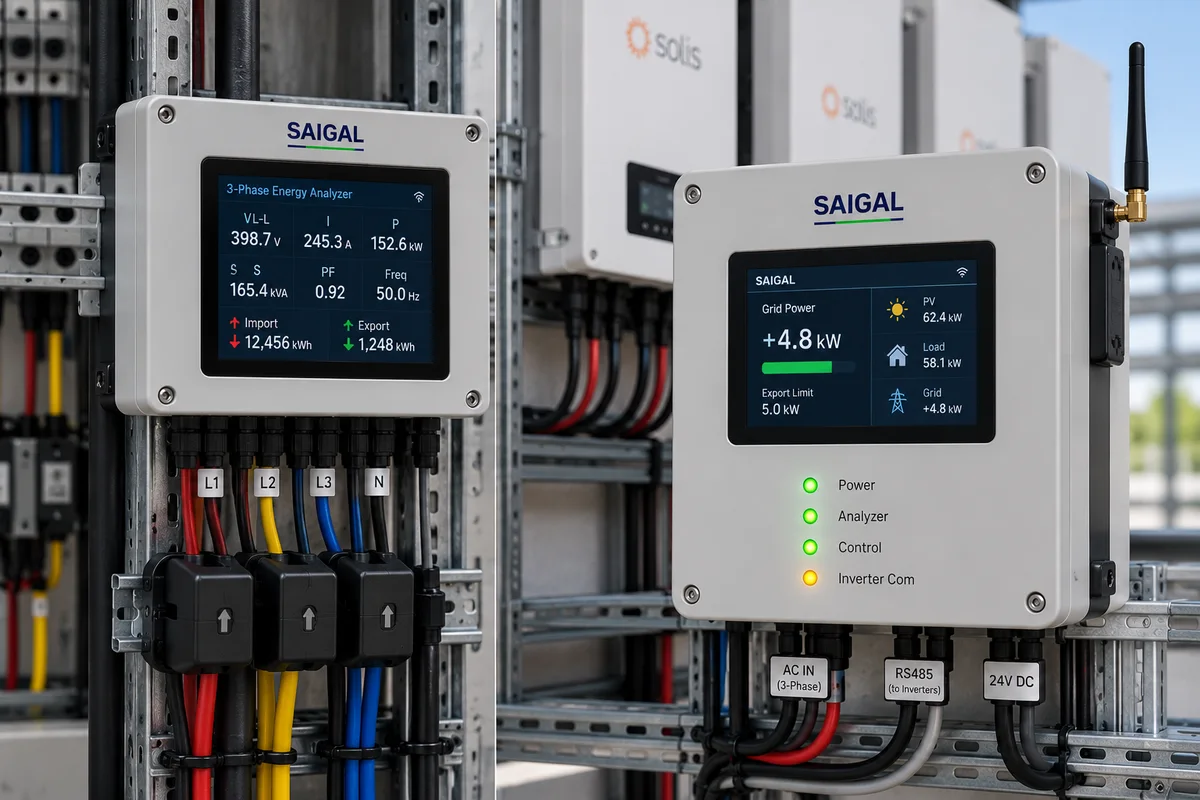

Smart Export Control Limiter
Automatic export limiting (zero export or a set limit): the Saigal box holds the inverters back so the plant never sends more to the grid than allowed. Scope: up to 1 device (an inverter or a meter) in a single room. Communication wire and CTs on the customer's account.
Smart Forecast Based Energy Planner
Forecast-based battery and grid control: the Saigal box forecasts the day's solar and plans when the battery charges and discharges around the peak-tariff hours, which change with the month. It caps grid import during the peak and holds export to a set limit. Needs a hybrid inverter with a battery. Scope: up to 1 inverter. Communication wire on the customer's account.

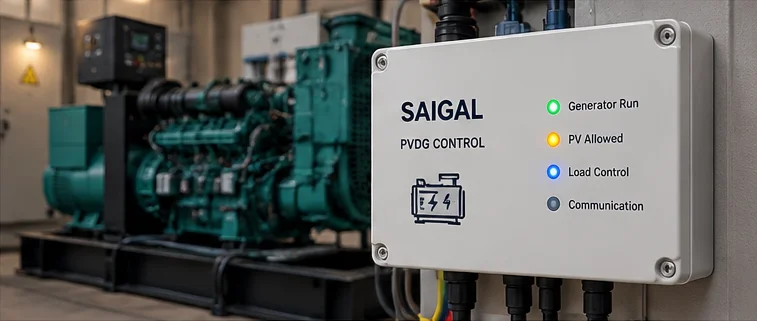

Smart PVDG Control
PV + diesel generator control: solar runs alongside the generator without back-feeding it — the Saigal box curtails the inverters to the generator's load in real time. Scope: 1 inverter, 1 grid meter and 1 generator meter (energy analyzers). Communication wire and CTs on the customer's account.
