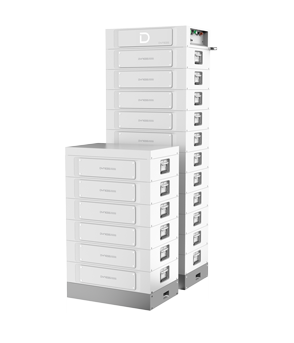

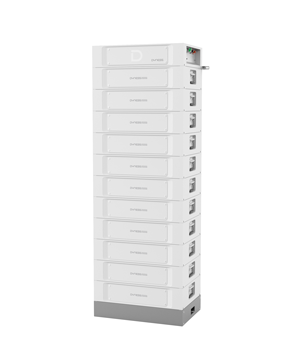

Dyness Stack100 battery module for scalable high-voltage energy storage. Each module delivers 5.12kWh and can be stacked in clusters of 3–15 modules, with up to 12 clusters per system (max 921.6kWh). Auto self-heating technology enables reliable operation in sub-zero conditions. IP30 rated for indoor installation. Compatible with Solis, GoodWe, and other compatible hybrid inverters.
Technical Specifications
| Type | battery |
| Model | Stack100 Module |
| Size | 5.12 |
| Category | Stack Series |
| Full Specifications | |
| Battery Type | LiFePO4 |
| Voltage Nominal | 51.2V |
| Energy Per Module Kwh | 5.12 |
| Modules Per Cluster Min | 3 |
| Modules Per Cluster Max | 15 |
| Max Clusters | 12 |
| Max System Energy Kwh | 921.6 |
| Cooling | Auto self-heating |
| Ip Rating | IP30 |
| Installation | Indoor |
| Operating Temp | -20~55°C |
| Certification | IEC 62619, CE, UN38.3 |
