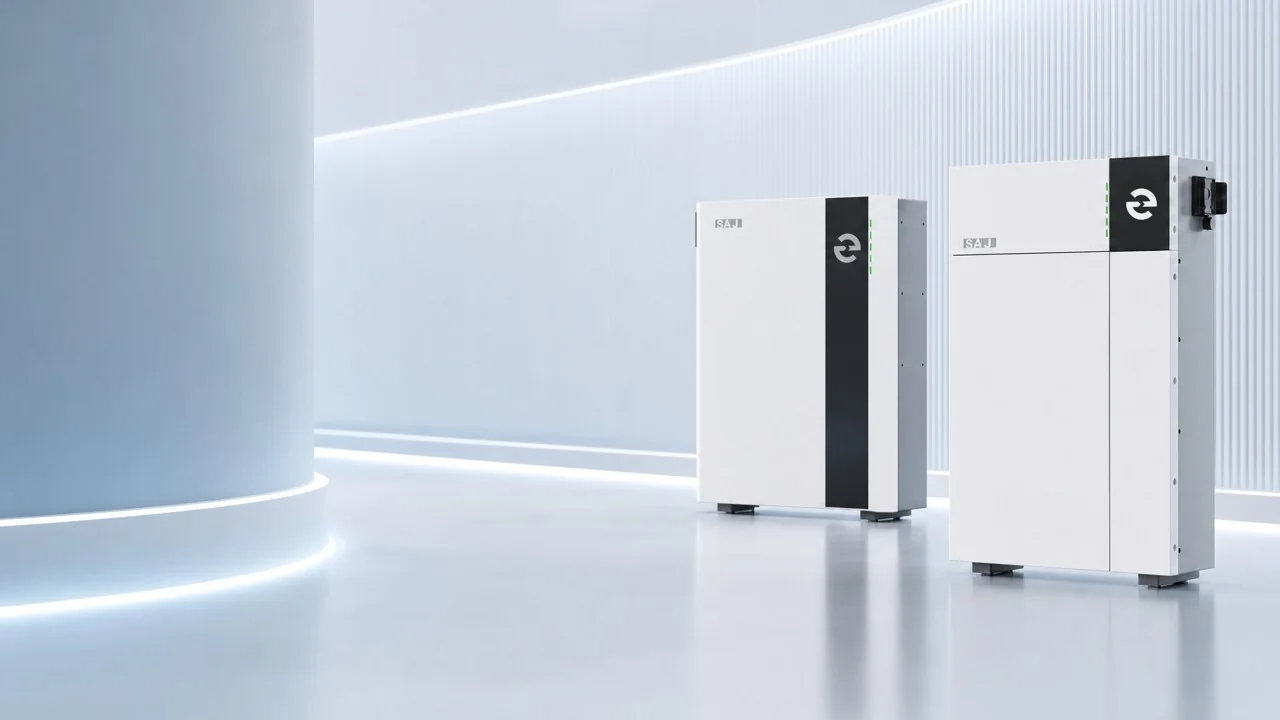

SAJ EK30 B3-16.0-LV-NEO deep-cycle LFP battery - 16kWh rated and 15.2kWh usable in a single 51.2V unit, so a 16kWh bank needs no stacking. 314Ah, 157A rated charge and discharge, 200A continuous discharge and a 300A 10-second peak. Built-in fire-protection module, integrated DC breaker, CAN to the inverter, 95% recommended depth of discharge and 8000+ cycles at 90% DOD. Up to 16 units in parallel for 256kWh. Plug and play with SAJ storage inverters. Indoor, IP20, natural cooling. Warranty: 5 years standard. Install a SAJ inverter and a SAJ battery together and BOTH units carry 7 years.
Technical Specifications
| Type | battery |
| Model | EK30 B3-16.0-LV-NEO |
| Size | 16kWh |
| Warranty | 5/7 years |
| Lead Time | On order |
| Category | SAJ |
| Full Specifications | |
| Chemistry | LiFePO4 |
| Rated Energy Kwh | 16 |
| Usable Energy Kwh | 15.2 |
| Capacity Ah | 314 |
| Rated Voltage V | 51.2 |
| Voltage Range V | 44.8-57.6 |
| Rated Charge Current A | 157 |
| Max Charge Continuous A | 157 |
| Rated Discharge Current A | 157 |
| Max Discharge Continuous A | 200 |
| Peak Discharge Current | 300A, 10s |
| Max Charge Power Kw | 8 |
| Max Discharge Power Kw | 10 |
| Communication | CAN |
| Dod Pct | 95 |
| Max Parallel Units | 16 |
| Max Parallel Energy Kwh | 256 |
| Cycle Life | >=8000 cycles @ 90% DOD (25C, 0.2C) |
| Dims Mm | 790x430x224 |
| Weight Kg | 110 |
| Installation | Indoor |
| Charge Temp C | 0-55 |
| Discharge Temp C | -20 to 55 |
| Ip Rating | IP20 |
| Cooling | Natural |
| Altitude M | <2000 |
| Dc Breaker | Integrated |
| Fire Protection | Built-in module |
| Certification | IEC 62619, IEC 62040, IEC 61000, UN38.3 |
| Warranty Years | 5/10 |
