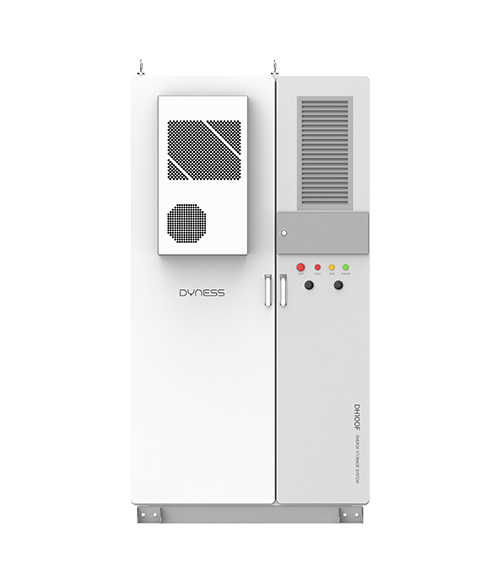

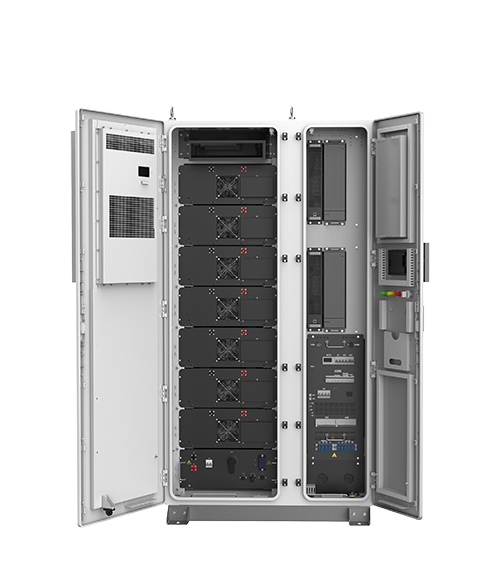

The Dyness DH100F is a 100 kWh all-in-one Battery Energy Storage System (BESS) designed for commercial and industrial sites that need a turnkey storage solution. Everything — batteries, BMS, inverter-side electronics, and safety systems — is housed in a single IP55+C3 rated cabinet that can be installed indoors or in industrial outdoor environments. It supports PV input, grid charging, off-grid operation, and diesel generator integration, making it suitable for facilities with unreliable grid power. Up to 10 units connect in parallel for a total of 2.3 MWh. Easy access panels and a straightforward maintenance interface keep operational costs low. Designed for factories, hospitals, cold stores, and large commercial buildings.
Technical Specifications
| Type | battery |
| Model | DH100F |
| Size | 100 |
| Warranty | 10 years product warranty |
| Category | DH Series |
| Full Specifications | |
| Battery Type | LiFePO4 |
| Cell Capacity | 250Ah |
| Nominal Capacity | 100kWh |
| Pv Integration | true |
| Grid Modes | On-grid / Off-grid |
| Diesel Generator Support | true |
| Ip Rating | IP55+C3 |
| Installation | Outdoor |
| Certification | CE, TUV, IEC |
