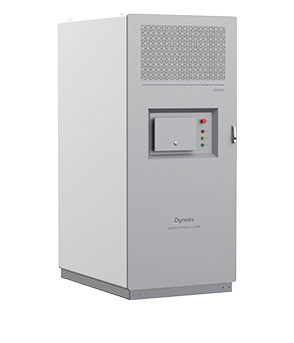

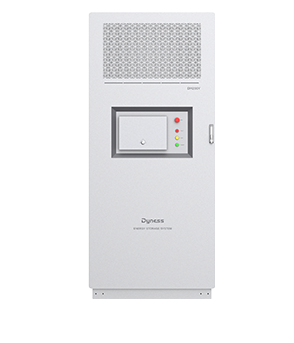

The Dyness DH200Y is a 232 kWh liquid-cooled Battery Energy Storage System built for industrial environments where high ambient temperatures would shorten the life of an air-cooled system. The PACK-level liquid cooling system maintains cell temperature uniformity within ±1.5°C, dramatically extending cell life compared to systems with hot spots. A compact 1.06 m² footprint makes it one of the most space-efficient large BESS cabinets available. Up to 10 units connect in parallel for 2.3 MWh total storage. IP40+PF S12D13 rated enclosure. Installation cost is reported to be 30% lower than comparable air-cooled alternatives due to the simplified external infrastructure. Designed for 1,000V DC bus architectures.
Technical Specifications
| Type | battery |
| Model | DH200Y |
| Size | 232 |
| Warranty | 10 years product warranty |
| Category | DH Series |
| Full Specifications | |
| Battery Type | LiFePO4 |
| Cell Capacity | 280Ah |
| Pack Config | 1P52S×5 |
| Rated Current A | 140 |
| Max Current A | 160 |
| Voltage Range Dc | 754–936Vdc |
| Nominal Capacity | 232kWh |
| Ac Rated Power | 100kW |
| Ac Voltage | 400Vac |
| Ac Wiring | 3P4L+PE |
| Ac Frequency | 50Hz |
| Ac Max Current A | 145 |
| Max Parallel Units | 10 |
| Max Total Capacity | 2.3MWh |
| Cooling | PACK Liquid-cooling + PCS Air-cooling |
| Ip Rating | IP55 |
| Anti Corrosion | C3 (optional C5) |
| Weight Kg | 2600 |
| Dimensions Wdh Mm | 1055×1475×2400 |
| Max Efficiency Pct | 90 |
| Operating Temp | -20~50°C (derating above 45°C) |
| Noise Db | ≤75 |
| Display | Touch screen |
| Comms | Ethernet/4G/RS485 |
| Certification | CQC, CE, TUV, LVD, UN38.3 |
