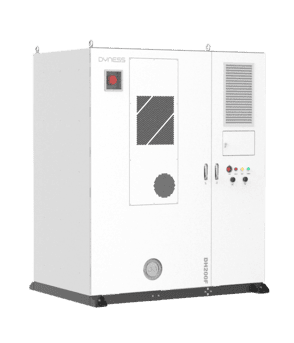

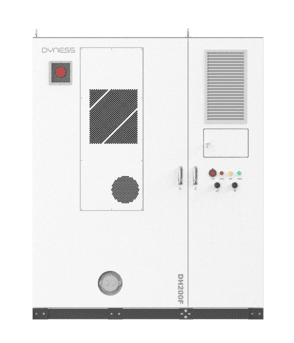

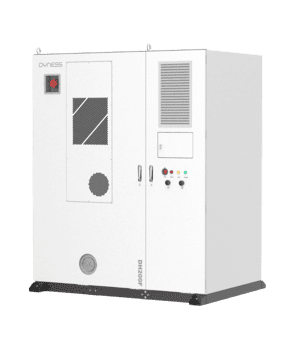

The Dyness DH200F is a 240 kWh DC-coupled Battery Energy Storage System designed for large industrial and commercial facilities. DC coupling means PV energy flows directly into the batteries at high efficiency, with no additional conversion losses. All 10 units in parallel provide up to 2.68 MWh of total storage — enough for a large factory or industrial campus to run through extended grid outages. The <20ms grid switching time ensures seamless transfer to battery backup with no visible interruption to sensitive equipment. Triple-layer fire detection adds an extra level of safety for high-energy storage at scale. IP-rated enclosure suitable for indoor installation.
Technical Specifications
| Type | battery |
| Model | DH200F |
| Size | 240 |
| Warranty | 10 years product warranty |
| Category | DH Series |
| Full Specifications | |
| Battery Type | LiFePO4 |
| Cell Capacity | 280Ah |
| Pack Config | 1P52S×5 |
| Rated Current A | 90 |
| Max Current A | 90 |
| Nominal Capacity | 240kWh |
| Ac Rated Power | 100kW |
| Ac Voltage | 400Vac |
| Ac Wiring | 3P4L+PE |
| Ac Frequency | 50Hz |
| Ac Max Current A | 145 |
| Max Parallel Units | 12 |
| Max Total Capacity | 2.88MWh |
| Cooling | PACK Liquid-cooling + PCS Air-cooling |
| Ip Rating | IP55 |
| Anti Corrosion | C3 (optional C5) |
| Weight Kg | 2800 |
| Dimensions Wdh Mm | 1055×1475×2400 |
| Max Efficiency Pct | 90 |
| Operating Temp | -20~50°C (derating above 45°C) |
| Noise Db | ≤75 |
| Display | Touch screen |
| Comms | Ethernet/4G/RS485 |
| Certification | CQC, CE, TUV, LVD, UN38.3 |
